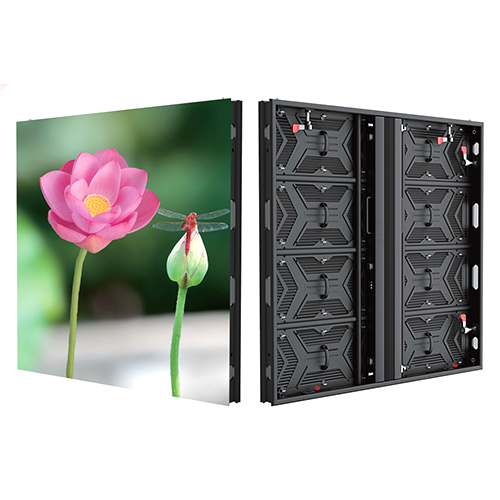

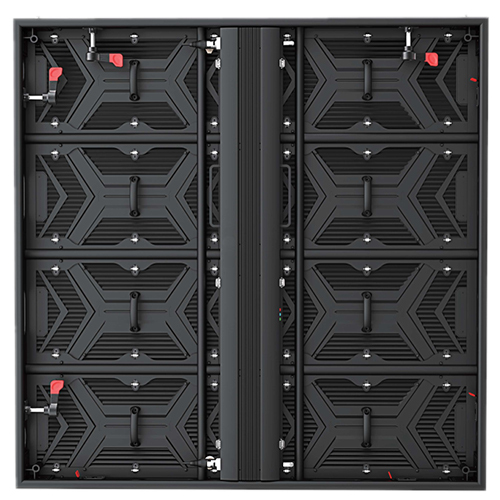

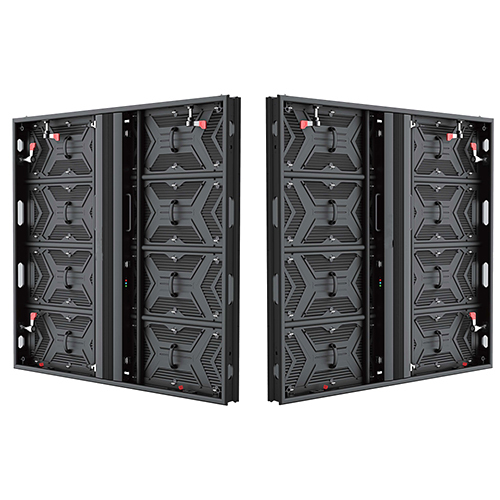

Outdoor LED Video Wall

Get a Price/Quote

Product Details:

Contrast Ratio 3000:1
Usage Outdoor Advertising, Sports Stadiums, Events, Public Displays
Control System Synchronous / Asynchronous Control System Supported
Material Die-Cast Aluminum or Steel Cabinet
Voltage AC 110~240V, 50/60Hz Volt (v)
Power Consumption Max: 750W/m2, Avg: 300W/m2 Watt (W)
Features High Brightness, Weatherproof, Energy Saving, Wide Viewing Angle
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Outdoor LED Video Wall Price And Quantity

Minimum Order Quantity 1 Number

Outdoor LED Video Wall Product Specifications

Power Consumption Max: 750W/m2, Avg: 300W/m2 Watt (W)
Features High Brightness, Weatherproof, Energy Saving, Wide Viewing Angle
Pixel Pitch P4, P6, P8, P10 mm (varies by model)
Contrast Ratio 3000:1
Usage Outdoor Advertising, Sports Stadiums, Events, Public Displays
Control System Synchronous / Asynchronous Control System Supported
Material Die-Cast Aluminum or Steel Cabinet
Voltage AC 110~240V, 50/60Hz Volt (v)
Weight Approx. 28-35 kg per panel (varies by model) Kilograms (kg)
LED Type SMD (3-in-1)
Application Areas Outdoor Billboards, Stadium Perimeters, Shopping Malls, Transit Hubs
Installation Type Wall Mounted / Hanging / Stacking
View Angle Horizontal: 140, Vertical: 120
Panel Size 1000mm x 1000mm / 960mm x 960mm / 640mm x 640mm (common sizes)

Input Signal HDMI, DVI, VGA, SDI, AV
Brightness 5000-7000 nits, adjustable
Control Distance Cat5 Cable: 100m, Fiber Optic: 10km
Humidity 10%-90% RH, non-condensing
Lifetime 100,000 hours
Ingress Protection (IP) Rating IP65 Front / IP54 Rear
Operating Temperature -20C to +60C
Cabinet Color Black (custom color available)
Maintenance Access Front / Rear Service Options
Frame Frequency 60Hz
Communication Mode LAN / WAN / Wireless / Fiber Optic
Gray Scale 14-16 Bit
Refresh Rate 1920Hz (High Refresh Rate)
Module Resolution Depending on pixel pitch, e.g., 160x160px
Certificates CE, RoHS, FCC, ISO9001 Certified

Product Description

Description

Our Outdoor LED Video Wall is designed to deliver exceptional visual performance in all weather conditions. Featuring high brightness, excellent contrast ratio, wide viewing angles, and an IP65-rated weatherproof design, it is ideal for outdoor advertising, stadiums, transportation hubs, shopping malls, corporate branding, public information displays, and live events. The modular die-cast cabinet design ensures easy installation and front/rear maintenance, while the high refresh rate provides smooth, flicker-free visuals for both live broadcasts and advertising content. Built for continuous 247 operation, the display offers outstanding durability, energy efficiency, and long service life.

Key Features

High Brightness: 5500 Nits
Cabinet Size: 1000 1000 mm
Front & Rear Maintenance
High Refresh Rate: 3840 Hz
Wide Viewing Angle
IP65 Weatherproof Protection
Die-Cast Aluminum Cabinet
Energy-Efficient Design
Long Lifespan: 100,000 Hours
Suitable for 247 Continuous Operation

FOB Port

Chennai Port, India (or your nearest export port, e.g., Mumbai, Kolkata, Nhava Sheva)

Main Export Markets

Middle East
Africa
South Asia
Southeast Asia
Europe
North America
South America
Australia

FAQ's of Outdoor LED Video Wall

Q1. What is the brightness of the Outdoor LED Video Wall?

A: The display offers a brightness of 5500 Nits, making it clearly visible even in direct sunlight.

Q2. Is the LED Video Wall waterproof?

A: Yes, it features an IP65-rated cabinet for reliable outdoor performance in rain, dust, and harsh weather conditions.

Q3. What maintenance options are available?

A: The display supports both front and rear maintenance, making servicing quick and convenient.

Q4. What applications is this product suitable for?

A: It is ideal for outdoor advertising, stadiums, transportation hubs, shopping malls, public information displays, exhibitions, concerts, and live events.

Q5. What is the cabinet size?

A: The cabinet size is 1000 1000 mm.

Q6. What is the refresh rate?

A: The LED display offers a 3840 Hz refresh rate, ensuring smooth, flicker-free video playback.

Q7. What is the expected lifespan of the display?

A: The Outdoor LED Video Wall has an estimated lifespan of 100,000 hours under normal operating conditions

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Outdoor LED Video Wall' category

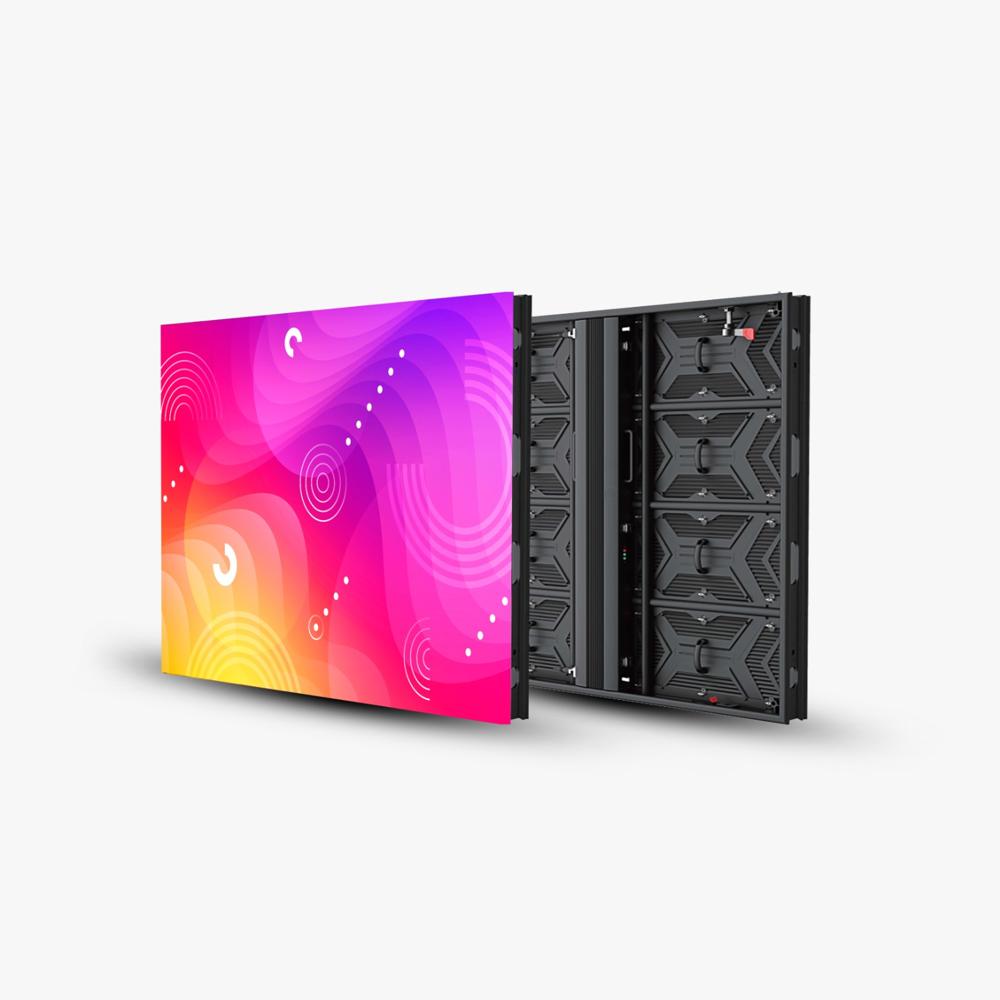

Lekswall outdoor P3.91 Price : 45000.0 INR Minimum Order Quantity : 50 Usage : Outdoor Contrast Ratio : 10,000:1 Operating Temperature : 20 C to +60 C Celsius (oC) Usage & Applications : Outdoor Advertising, Live Events, Retail Exteriors, Public Spaces Material : DieCast Cabinet Voltage : AC 110 240V Volt (v) Features : UltraHigh Brightness, IP65 Rated, Front & Rear Maintenance, Wide Viewing Angle Pixel Pitch : P3.91 Power Consumption : Average 260 W/m ; Maximum 780 W/m Watt (W) Power Rating : Maximum 780 W/m Display Type : HighEnd Outdoor LED Video Wall Installation Type : Outdoor Fixed Installation Panel Size : 1000 1000 mm View Angle : 140 Horizontal / 160 Vertical Warranty : 1 Years LED Type : SMD1921 Weight : 22.5 kg Kilograms (kg) Rated Voltage : AC 110 240V Volt (V) Application Areas : Outdoor Advertising, Live Events, Retail Exteriors, Public Spaces
