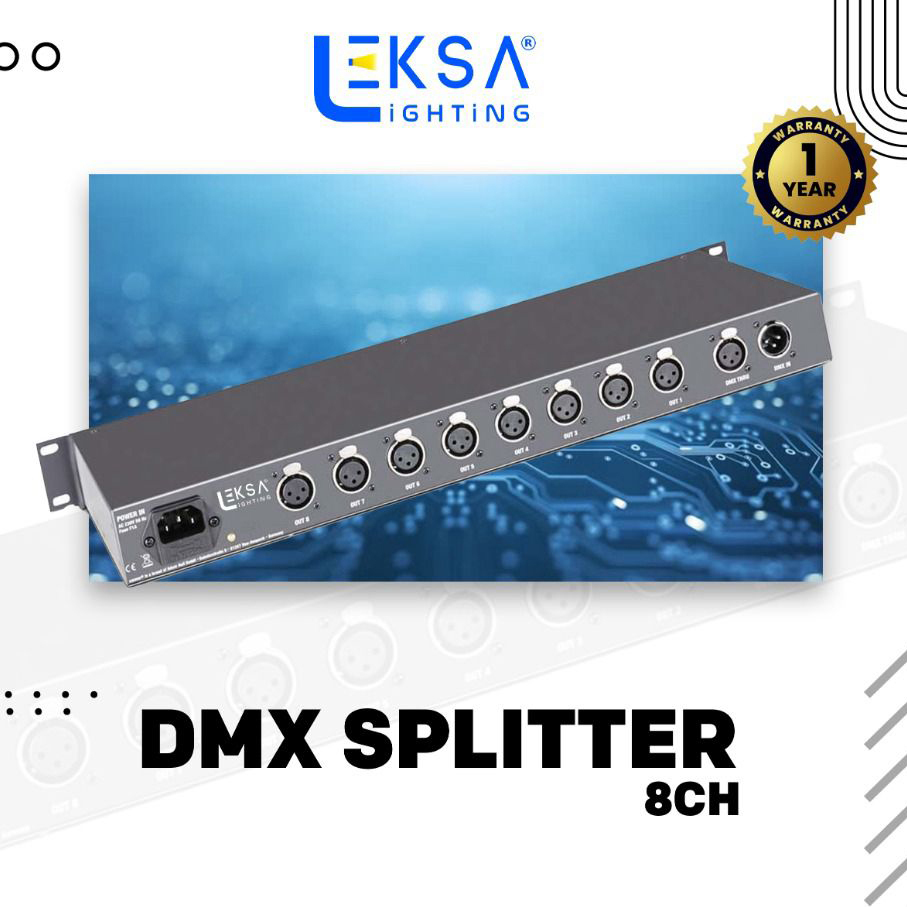

8 Channel DMX Splitter

Get a Price/Quote

Product Details:

Usage Stage lighting, DMX signal distribution, events, and theatres
Operating Temperature -20C to +45C
Power Supply External/Internal AC supply
Components Metal enclosure, internal power supply, optoelectronic isolation
Display Type LED Indicators for each channel
Power Source Mains AC power
Response Time Real-time signal response (low latency)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

8 Channel DMX Splitter Price And Quantity

Minimum Order Quantity 50 Unit

8 Channel DMX Splitter Product Specifications

Capacity 8 output channels
Rated Voltage AC 100-240V
Display Type LED Indicators for each channel
Power Source Mains AC power
Product Type 8 Channel DMX Splitter / Signal Distributor
Supply Voltage 100-240V AC, 50/60Hz
Response Time Real-time signal response (low latency)
Current Rating < 1A
Usage Stage lighting, DMX signal distribution, events, and theatres
Application Lighting control, show systems, event technology
Operating Temperature -20C to +45C
Power Supply External/Internal AC supply
Thickness Standard 1U rackmount height (~44 mm)
Function Splits a single DMX input into 8 isolated DMX outputs
Components Metal enclosure, internal power supply, optoelectronic isolation
Dimension (L*W*H) Approx. 482 mm x 120 mm x 44 mm (L x W x H)
Weight Approx. 2.5 kg
Color Black/Grey
Size Standard rack size
Frequency 50/60 Hz
Input 1 x DMX512 (3-pin or 5-pin XLR, selectable)
Interface XLR connectors (3-pin or 5-pin selectable)
Output 8 x DMX512 (3-pin or 5-pin XLR, isolated outputs)
Features 1 in 8 out, optically isolated outputs, rack mountable, LED status indicators
Resolution DMX512 Standard resolution
IP Rating IP20 (indoor use only)

Output Protection Overvoltage and short circuit on outputs
Storage Temperature -30C to +60C
Signal Amplification Built-in driver for boosting DMX signals
Power Consumption Less than 15W
Output Connection Supports both 3-pin and 5-pin XLR output connectors
Line Termination Internal termination switch for DMX chain end
Control Protocol DMX512, complies with USITT standard
Humidity Range 0-85% non-condensing
Operational Indicators Power and output signal LED indicators
Mounting Type 19-inch rack mountable, 1U height
Noise Immunity High-grade isolation avoids ground loops and interference
Output Isolation Each output individually optically isolated
Build Quality Durable metal chassis for professional environments

8 Channel DMX Splitter Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Unit Per Month
Delivery Time 5-7 Days
Main Domestic Market All India

Product Description

Unlock supreme control with our 8 Channel DMX Splitter, designed for first-string lighting professionals seeking crowning reliability and performance at the best price. This affordable 1U, 19-inch rack-mountable unit features individual optical isolation for each output, supporting both 3-pin and 5-pin XLR connectors. With robust overvoltage and short-circuit protection, internal signal amplification, high-grade noise immunity, and built-in driver technology, it ensures flawless DMX distribution. Its durable metal chassis and wide operating range make it ideal for stages, events, theatres, and lighting control systems. Experience premium quality at an unbeatable value.

Versatile Usage & Wide-Ranging Applications

The 8 Channel DMX Splitter is the preferred tool for professional event technology, stage lighting control, and show systems. Ideal for applications on standard 19-inch rack surfaces, it meets the demands of theatres, concert venues, and live event productions. Used by lighting engineers, technical crews, and event organizers, this unit reliably distributes DMX signals to multiple devices, ensuring flawless lighting synchronization in complex setups for stunning visual experiences.

Swift Delivery, Certified Quality & Global Export

We offer express shipping and secure packaging to ensure your DMX splitter arrives in optimal condition, regardless of destination. Each unit is produced under stringent certification standards to guarantee reliability and quality. With a strong export presence, our main markets include Europe, North America, Asia, and beyond. Whether you're in India or overseas, count on our reliable delivery and internationally compliant products to elevate your lighting solutions seamlessly.

FAQ's of 8 Channel DMX Splitter:

Q: How does the 8 Channel DMX Splitter enhance DMX signal distribution in professional environments?

A: This splitter amplifies and individually isolates each DMX output, ensuring superior signal integrity, reducing interference, and preventing ground loops, especially in demanding stage or event setups.

Q: What type of connectors and outputs does this DMX splitter support?

A: It supports both 3-pin and 5-pin XLR connectors for input and outputs, providing compatibility with various DMX equipment and flexible system integration.

Q: When should the internal termination switch be used on this DMX splitter?

A: Activate the internal termination switch only when the device is positioned at the end of a DMX chain to prevent signal reflection and data loss, ensuring clean DMX communication.

Q: Where can the 8 Channel DMX Splitter be installed, considering its design and protection features?

A: It is designed for indoor environments, featuring IP20 rating and standard 19-inch rack-mount compatibility, making it easy to install in control rooms, backstage racks, or portable road cases.

Q: What are the main benefits of using optically isolated outputs in this device?

A: Optical isolation for each output channel minimizes the risk of equipment damage from electrical faults and eliminates cross-talk, delivering stable and dependable DMX performance throughout your lighting network.
