Product Description

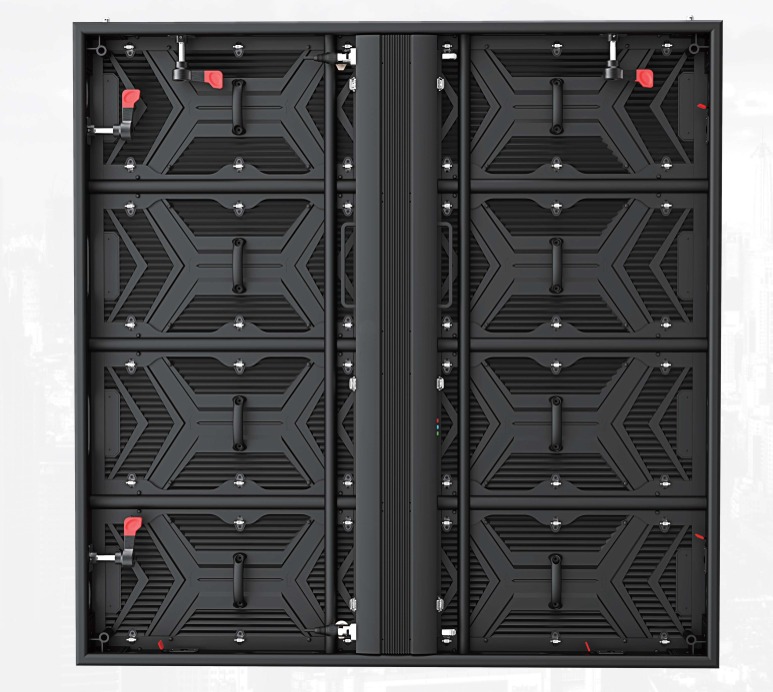

Leksa P7.81 High-End Outdoor LED Video Wall Die Cast Series
The Leksa P7.81 High-End Outdoor LED Video Wall is a professional outdoor display solution designed to deliver ultra-bright, vivid, and high-impact visuals even in direct sunlight. Equipped with SMD2727 LED technology and a P7.81 pixel pitch, it provides reliable performance for outdoor advertising, live events, retail exteriors, public spaces, and other large-format digital display applications.
With 6000 nits brightness, a 3840 Hz refresh rate, and a high 10,000:1 contrast ratio, the display delivers smooth and vibrant visual content. Its 140 horizontal and 160 vertical viewing angles provide wide visibility for outdoor audiences.
The 1000x1000 mm cabinet weighs 22.5 kg and supports front and rear maintenance for convenient installation and servicing. The display is IP65 rated and operates on AC 110-240V. It has an average power consumption of 260 W/m, maximum power consumption of 780 W/m, and a rated lifetime of 100,000 hours.
Key Features
- Pixel Pitch: P7.81
- SMD2727 LED Technology
- Brightness: 6000 Nits
- Refresh Rate: 3840 Hz
- Contrast Ratio: 10,000:1
- Pixel Density: 16,384 Dots/m
- IP65 Rated
- Front & Rear Maintenance
- Cabinet Size: 1000x1000 mm
- Cabinet Weight: 22.5 kg
- 140 Horizontal / 160 Vertical Viewing Angle
- 16-Bit Grey Level
- Colour Temperature: 1000-18500 K
- Average Power Consumption: 260 W/m
- Maximum Power Consumption: 780 W/m
- Life Span: Up to 1,00,000 Hours
- Suitable for Outdoor Advertising, Live Events, Retail Exteriors & Public Spaces
Premium Outdoor PerformanceWith a cutting-edge pixel pitch of P7.81 and SMD2727 LED technology, the Lekswall High End Outdoor Video Wall delivers sharp, vivid images even under intense sunlight. Its IP65 watertight construction ensures endurance against challenging weather, making it ideal for high-traffic outdoor environments and public venues.
Versatile Application and InstallationDesigned for fixed outdoor setups, this LED wall is perfect for a variety of uses, including outdoor advertising, retail signage, live events, and public displays. The lightweight 22.5 kg die-cast cabinet allows for easier installation and maintenance, suiting large-scale outdoor installations that require long-term durability.
FAQ's of Lekswall High end Outdoor P7.81:
Q: How does the Lekswall High End Outdoor P7.81 perform under harsh weather conditions?
A: The P7.81 LED video wall is IP65 rated, providing exceptional resistance to dust and water, which ensures consistent operation even in rain or extreme temperatures (-20C to +60C). Its die-cast cabinet further enhances durability in demanding outdoor environments.
Q: What makes this LED video wall suitable for outdoor advertising and live events?
A: Its ultra-high brightness, wide viewing angles (140 horizontal/160 vertical), and vibrant colors enable clear and impactful content display, even under direct sunlight. This makes it highly effective for crowd engagement in advertising and live event settings.
Q: Where can the Lekswall Outdoor P7.81 be installed?
A: It is ideal for various outdoor locations such as billboards, retail exteriors, stadium perimeters, event venues, and public spaces, thanks to its robust construction and weatherproof features.
Q: What is the typical power consumption and electrical requirement for this display?
A: The wall operates efficiently with an average power consumption of 260 W/m2 and a maximum of 780 W/m2. It runs on an AC voltage range of 110-240V, making it adaptable to global electrical standards.
Q: How is maintenance performed on the Lekswall Outdoor P7.81?
A: Both front and rear access options are available, allowing for quick panel servicing and minimizing downtime, which is especially beneficial for high-visibility, fixed outdoor installations.
Q: What benefits does the high contrast ratio offer?
A: With a contrast ratio of 10,000:1, the display can produce deeper blacks and brighter whites, resulting in striking visual quality and enhanced readability in any lighting condition.
