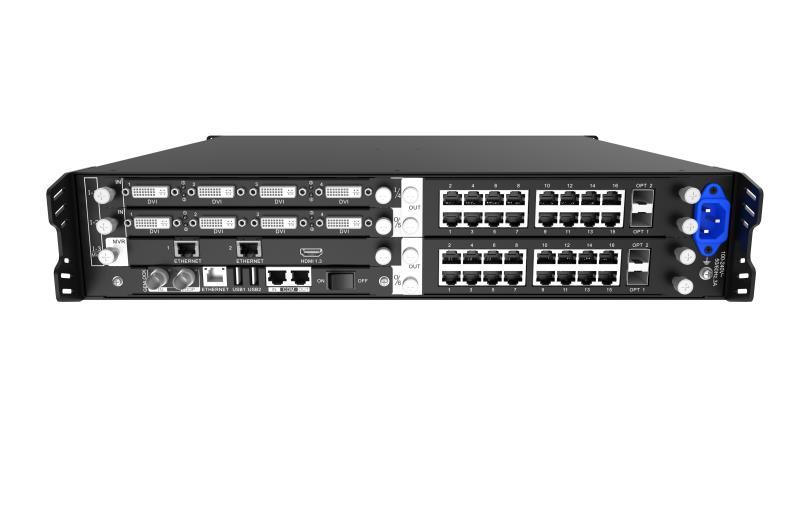

H2 Video Wall Splicer H2 Video Wall Splicer H2 Video Wall Splicer H2 Video Wall Splicer

H2 Video Wall Splicer

40000.0 INR/Piece

Product Details:

  • Pixel Pitch Not Applicable (Splicer device, not a display panel)
  • View Angle Wide Viewing Angle (depends on display type connected)
  • Features Multi-screen splicing, Seamless switching, Real-time preview, Multiple signal input support
  • Usage Video Wall Display Management
  • Voltage AC 100-240V, 50/60Hz Volt (v)
  • Installation Type Rack Mountable
  • Material Metal enclosure
  • Click to view more
X

H2 Video Wall Splicer Price And Quantity

  • 1 Piece
  • 40000.0 INR/Piece

H2 Video Wall Splicer Product Specifications

  • HDMI, DVI, DisplayPort (DP), 3G-SDI, IP, Ethernet, Fiber (depending on installed cards
  • Embedded/Hardware-based Control System
  • 0 C to 45 C Celsius (oC)
  • Supports multiple LED display types
  • Multi-screen splicing, Seamless switching, Real-time preview, Multiple signal input support
  • Video Wall Display Management
  • AC 100-240V, 50/60Hz Volt (v)
  • Metal enclosure
  • Rack Mountable
  • Wide Viewing Angle (depends on display type connected)
  • Not Applicable (Splicer device, not a display panel)
  • 1 Years
  • Approx. 11 kg Kilograms (kg)
  • HDMI, DisplayPort, DVI, Fiber Optic, Ethernet
  • LED Video Wall, Command Center, Control Room, Broadcast Studio, Auditorium, Digital Signage
  • Dependent on connected display specifications
  • 50/60 Hz Hertz (HZ)
  • Single Phase
  • LED Video Wall Splicer / Video Processor
  • 2U Rack Size
  • 210W Volt (V)
  • AC 100-240V, 50/60Hz Volt (V)
  • Control rooms, Conference rooms, Broadcasting, Events, Digital signage
  • Supports LAN/RS232 remote control
  • DVI, HDMI, VGA, SDI, DP (varies by model and configuration)
  • 2U Standard Rack
  • Built-in fan cooling
  • 0C to 50C
  • Embedded/External audio (depends on input modules)
  • DVI, HDMI, SDI (varies by model and configuration)
  • Genlock/Framelock support
  • 10% to 85% (Non-Condensing)
  • Up to 3840 x 2160 @ 60Hz (4K, depends on card configuration)

H2 Video Wall Splicer Trade Information

  • 1 Week

Product Description

Description

The NovaStar H2 Video Wall Splicer is a high-performance, modular video processing solution designed for fine-pitch LED display applications. It combines advanced video wall splicing and LED control capabilities in a single device, offering flexible input and output configurations through hot-swappable modular cards. Supporting HDMI, DP, DVI, SDI, IP, and fiber interfaces, the H2 delivers seamless 4K/8K image processing, HDR support, low-latency performance, multi-layer display, and centralized web-based management. It is an ideal solution for control rooms, broadcasting, command centers, exhibitions, conference halls, rental staging, and large-scale LED display installations.


Key Features

  • Modular, hot-swappable input and output card design
  • Supports up to 52 million pixels (depending on sending card configuration)
  • 4K and 8K ultra-HD video input support
  • HDR10 and HLG image processing
  • Multi-screen and multi-layer display management
  • Supports HDMI, DP, DVI, VGA, SDI, IP, Fiber, HDBaseT, and NDI inputs
  • Ultra-low latency (as low as one frame)
  • Web-based control without software installation
  • Up to 2,000 preset configurations
  • Seamless switching with fade effects
  • Real-time monitoring of input/output status
  • Backup support for devices, input sources, and sending cards
  • Compatible with Windows, macOS, Linux, Android, and iOS
  • Suitable for fine-pitch LED display applications
  • Centralized management with OpenAPI and SNMP support

FAQ's

Q1. What is the NovaStar H2 used for?
The H2 is used for video wall processing, LED display control, multi-screen management, and seamless video splicing.

Q2. Does the H2 support 4K and 8K video?
Yes. It supports both 4K and selected 8K video input resolutions depending on the installed input cards.

Q3. Can the input and output cards be replaced without shutting down the system?
Yes. The H2 features hot-swappable modular input and output cards.

Q4. Is web-based control available?
Yes. The H2 supports browser-based control, monitoring, firmware updates, and multi-user collaboration.

Q5. Which applications is the H2 suitable for?
It is suitable for control rooms, command centers, broadcasting, exhibitions, conference halls, monitoring centers, educational institutions, and rental stage applications.


Product Specifications

  • Model: NovaStar H2
  • Product Type: Video Wall Splicer
  • Rack Size: 2U
  • Maximum Input Cards: 4
  • Maximum Output Cards: 2
  • Maximum Layers: 32
  • Maximum Loading Capacity: Up to 52 Million Pixels (configuration dependent)
  • Power Supply: 100240V AC, 50/60Hz
  • Power Consumption: 210 W
  • Operating Temperature: 0C to 45C
  • Dimensions: 482.6 529.8 88.1 mm
  • Weight: 11 kg (Chassis)


Applications

  • LED Video Wall Control Rooms
  • Security & Surveillance Centers
  • Broadcast & Television Studios
  • Corporate Command Centers
  • Conference & Meeting Rooms
  • Government Monitoring Centers
  • Smart City Control Rooms
  • Educational Institutions
  • Exhibition & Trade Show Displays
  • Stage Rental & Live Events
  • Digital Signage Networks
  • Banking & Financial Monitoring Centers
  • Industrial Process Monitoring
  • Traffic Management Centers
  • Energy & Utility Control Centers
