520 * 760 Single Aluminium Truss

Name: 520 * 760 Single Aluminium Truss
Brand: Leksa Lighting Technologies Pvt. Ltd.
Price: 35000.0 INR
Availability: InStock

35000.0 INR/Unit

Get a Price/Quote

Product Details:

Outer Diameter Main Tube: 50 mm Millimeter (mm)
Thickness Main Tube: 3 mm; Vice Tube: 2 mm; Braces: 2 mm Millimeter (mm)
Finish Aluminium Finish
Size 520 760 mm
Material Aluminium
Material Grade Aluminium 6061-T6
Diameter Main Tube: 50 mm; Vice Tube: 50 mm; Braces: 30 mm Millimeter (mm)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

520 * 760 Single Aluminium Truss Price And Quantity

Price 35000.0 INR/Unit
Minimum Order Quantity 5 Unit

520 * 760 Single Aluminium Truss Product Specifications

Dimension (L*W*H) 1/2/3 m 520 mm 760 mm Meter (m)
Temper T6
Diameter Main Tube: 50 mm; Vice Tube: 50 mm; Braces: 30 mm Millimeter (mm)
Cross Dimension 520 760 mm
Material Grade Aluminium 6061-T6
Size 520 760 mm
Material Aluminium
Thickness Main Tube: 3 mm; Vice Tube: 2 mm; Braces: 2 mm Millimeter (mm)
Outer Diameter Main Tube: 50 mm Millimeter (mm)
Finish Aluminium Finish
Usage & Applications LED Walls, Lighting, Audio, Green Screen, Exhibitions, Stage Structures
Color Aluminium / Silver
Grade 6061-T6
Alloy Aluminium 6061
Width 520 mm Millimeter (mm)
Length 1 m / 2 m / 3 m Meter (m)
Features Lightweight, Durable, Large Spigot Coupler, Modular Construction, Easy Setup
Product Type 520 760 Single Aluminium Truss
Strength High Strength

Product Description

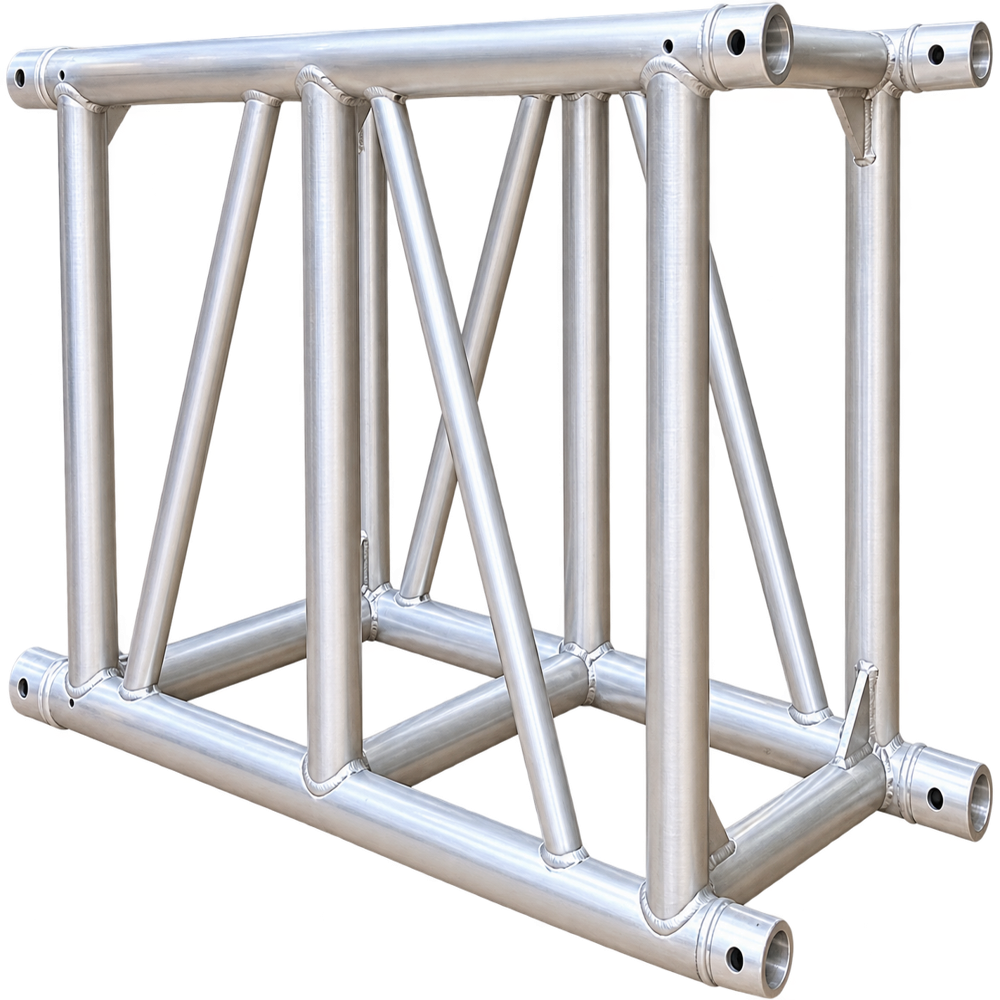

520 760 Single Aluminium Truss

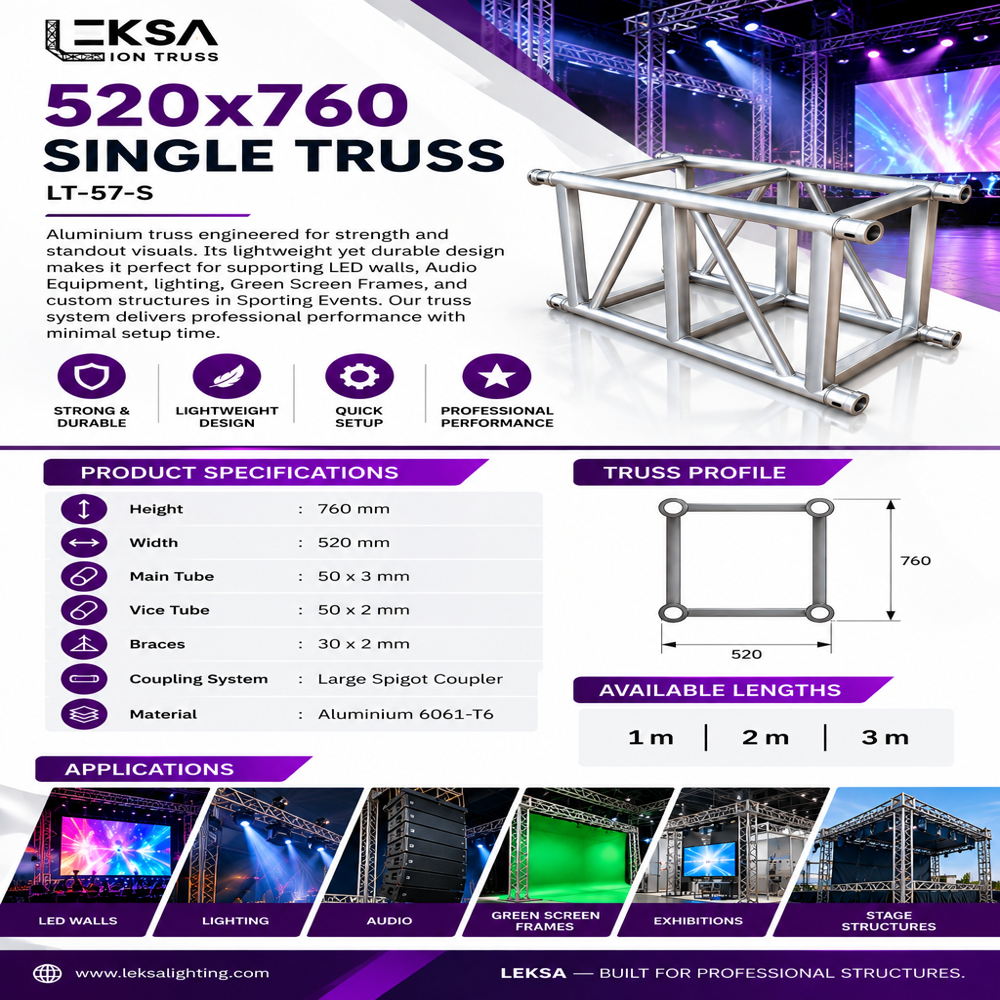

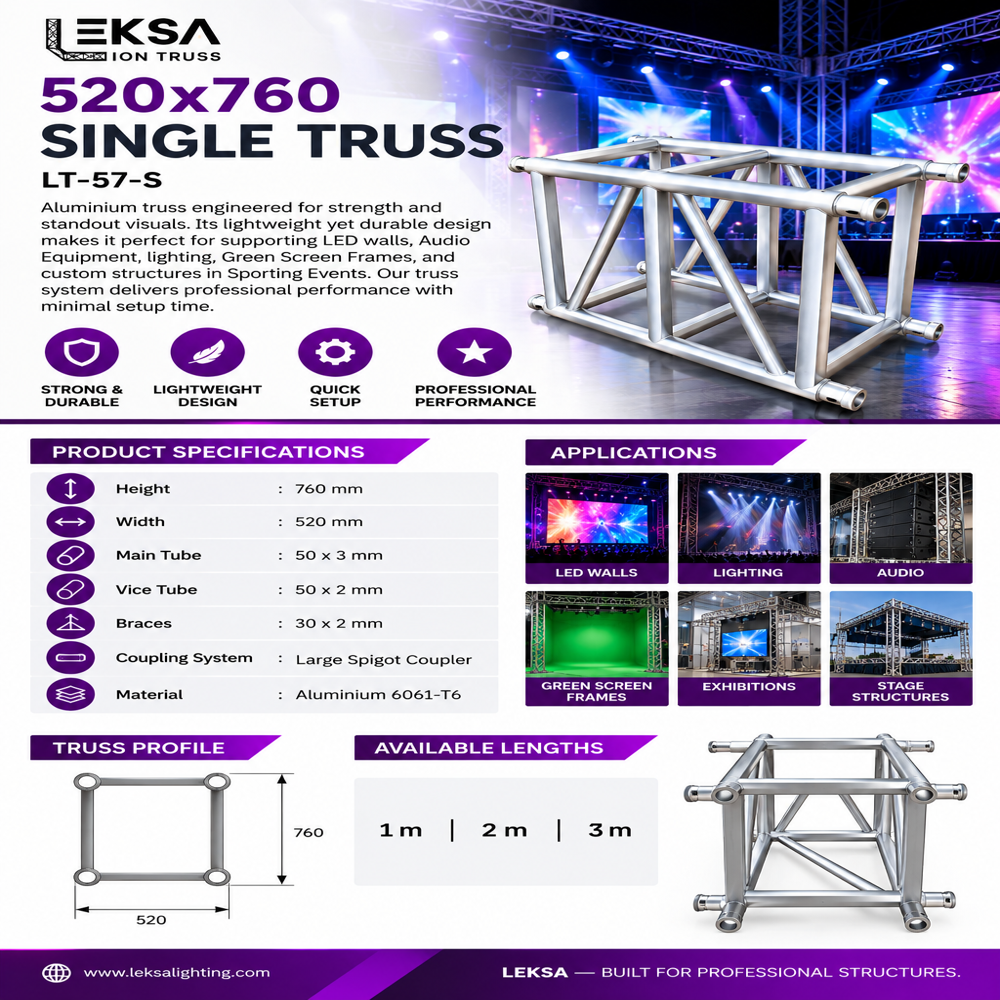

The 520 760 Single Aluminium Truss (Model LT-57-S) is a professional heavy-duty trussing solution designed for LED walls, stage lighting, audio equipment, green screen frames, exhibitions, stage setups, and custom structures. Manufactured from Aluminium 6061-T6, it provides a durable yet lightweight construction suitable for professional event and structural installations. 520x760

The truss incorporates a Large Spigot Coupler connection system for modular assembly and is available in 1 m, 2 m, and 3 m lengths.

Key Features

520 760 mm rectangular truss profile
Manufactured from Aluminium 6061-T6
50 3 mm main tube
50 2 mm vice tube
30 2 mm braces
Large Spigot Coupler connection system
Available in 1 m, 2 m & 3 m lengths
Lightweight and durable construction
Modular design for convenient installation
Suitable for professional stage, exhibition, LED wall, lighting and
