2 Way 90 Bend

22000.00 INR/Piece

Get a Price/Quote

Product Details:

Finish Aluminium Finish
Material Aluminium
Temper T6
Cross Dimension 300 300 mm
Width 300 Millimeter (mm)
Size 300 300 mm Truss Profile
Material Grade Aluminium 6061-T6
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

2 Way 90 Bend Price And Quantity

Price 22000.00 INR/Piece
Minimum Order Quantity 2 Piece

2 Way 90 Bend Product Specifications

Material Grade Aluminium 6061-T6
Size 300 300 mm Truss Profile
Width 300 Millimeter (mm)
Strength High Strength
Finish Aluminium Finish
Cross Dimension 300 300 mm
Product Type 2 Way 90 Bend Aluminium Truss
Temper T6
Material Aluminium
Grade 6061-T6
Dimension (L*W*H) Width 300 mm Height 300 mm (length not specified) Millimeter (mm)
Usage & Applications LED Walls, Lighting, Audio, Green Screen, Exhibitions, Stage Structures
Features Lightweight, Durable, High Strength, Quick Assembly
Alloy Aluminium 6061
Color Aluminium / Silver
Thickness Main Tube: 3 mm; Vice Tube & Braces: 2 mm Millimeter (mm)
Diameter Main Tube: 50 mm; Vice Tube: 20 mm; Braces: 20 mm Millimeter (mm)
Outer Diameter Main Tube: 50 mm Millimeter (mm)

Product Description

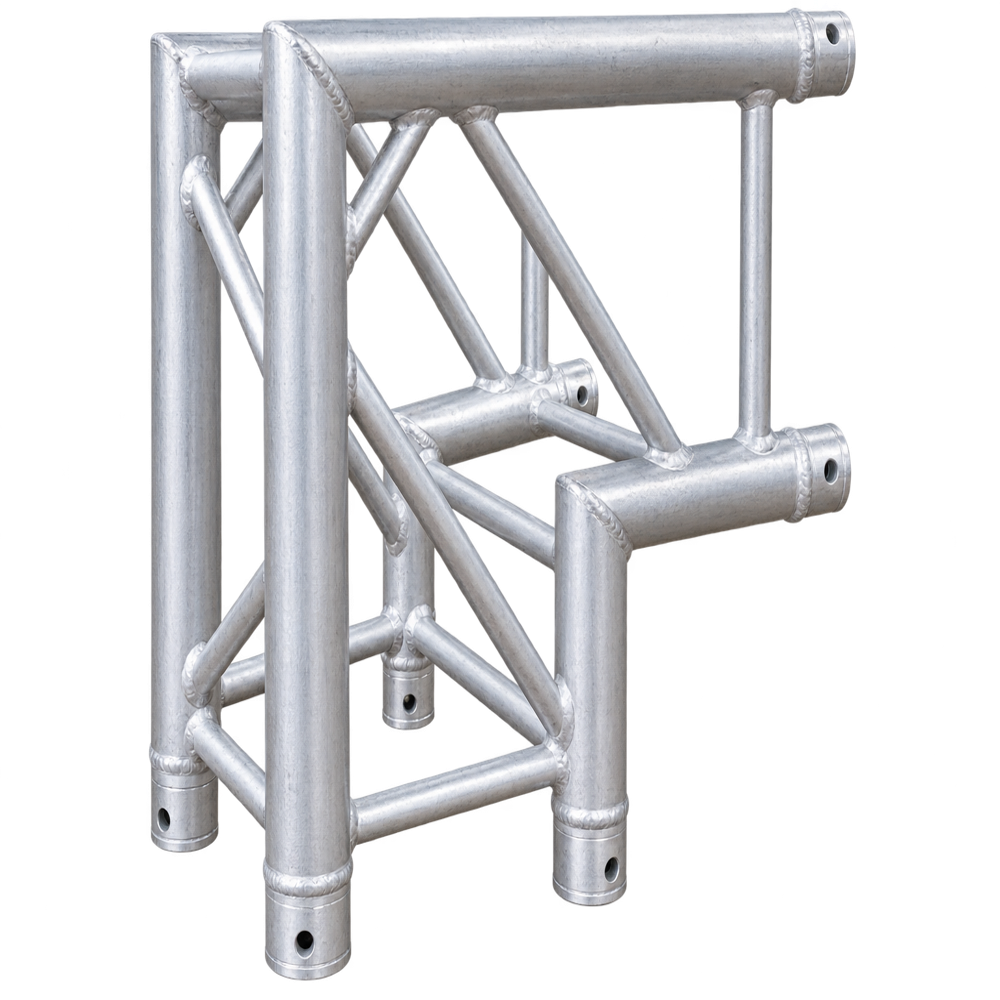

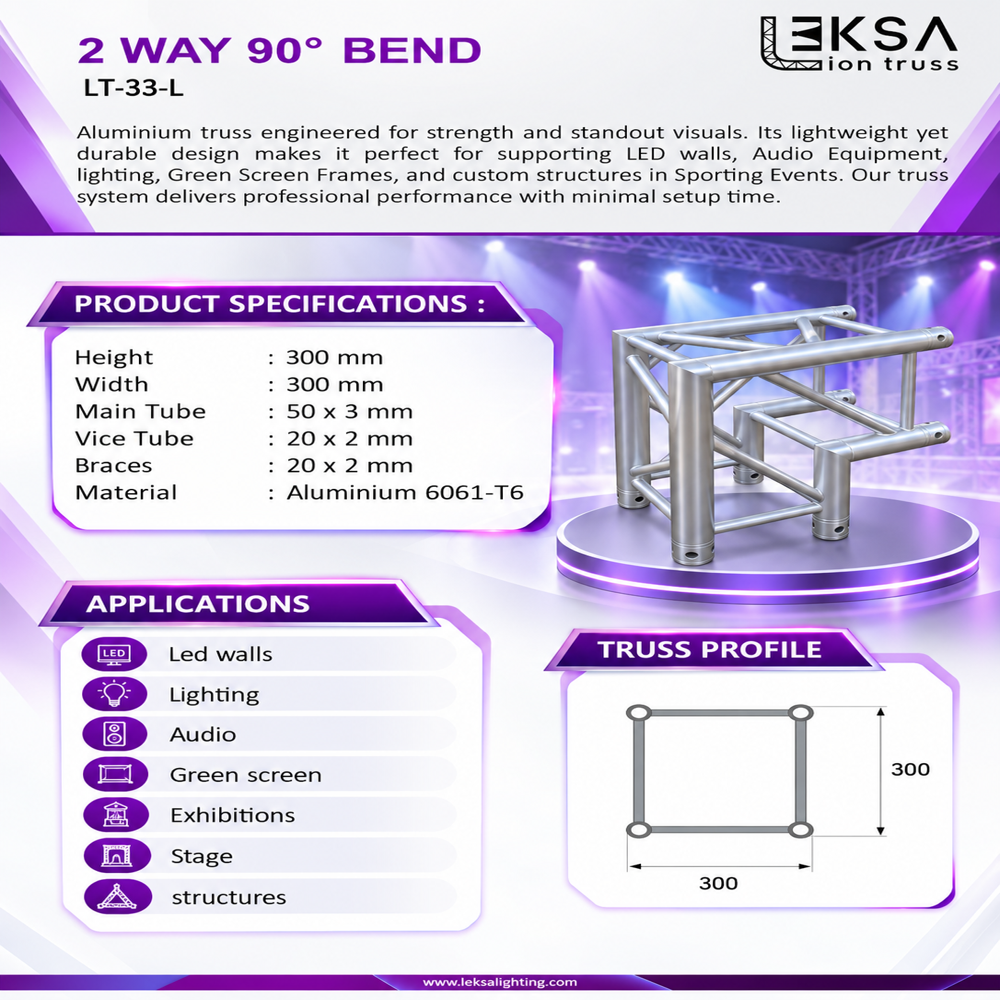

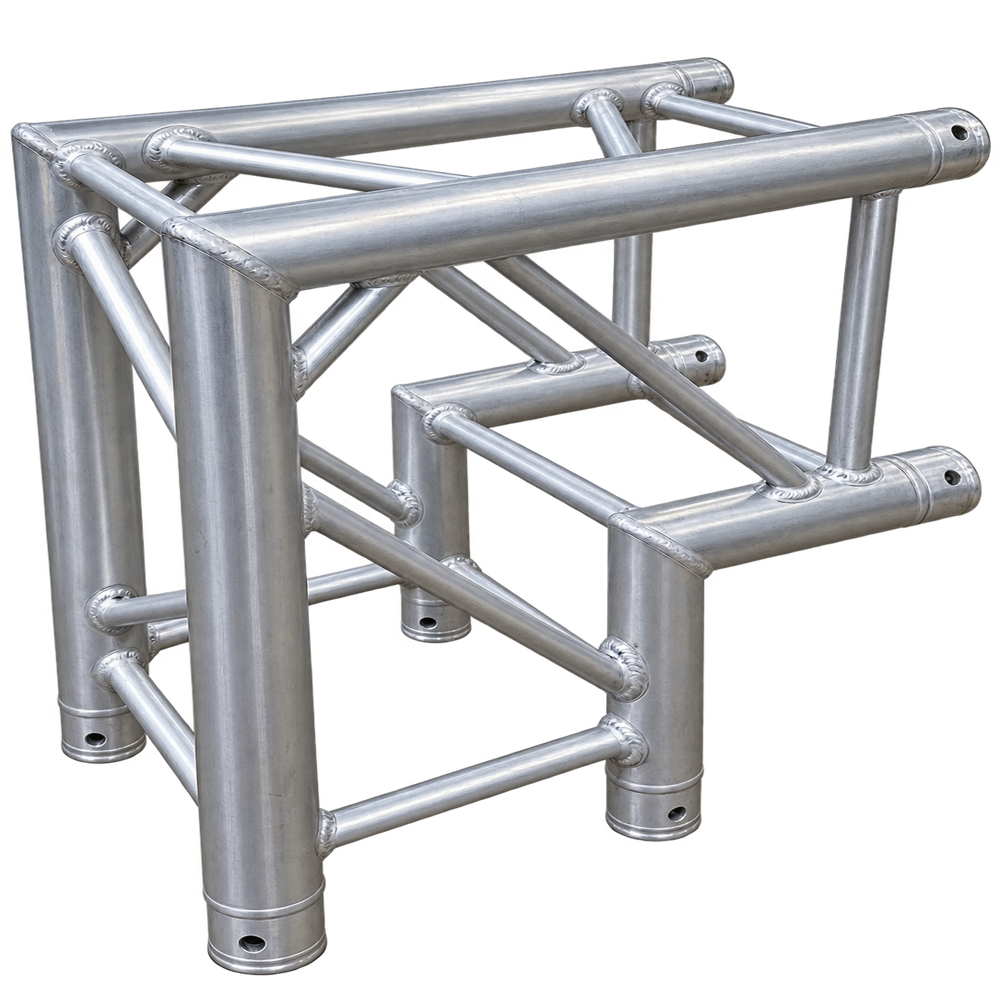

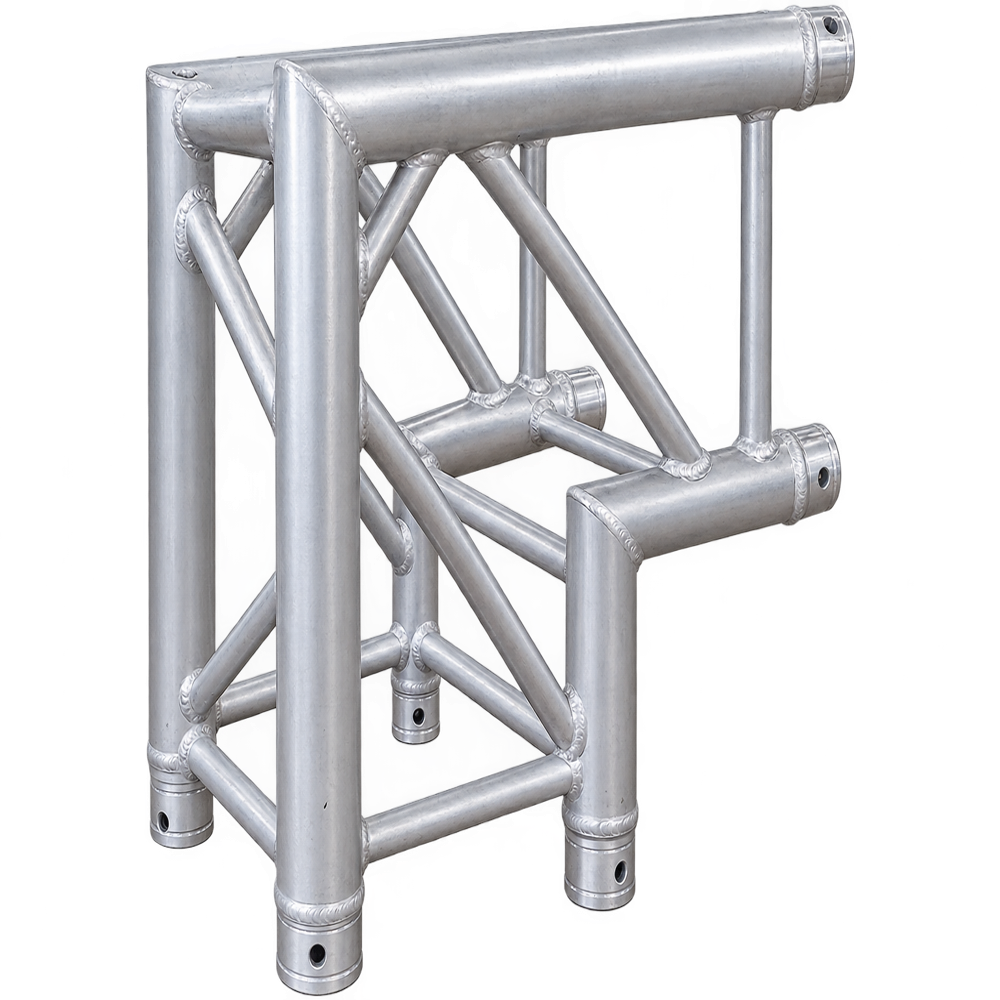

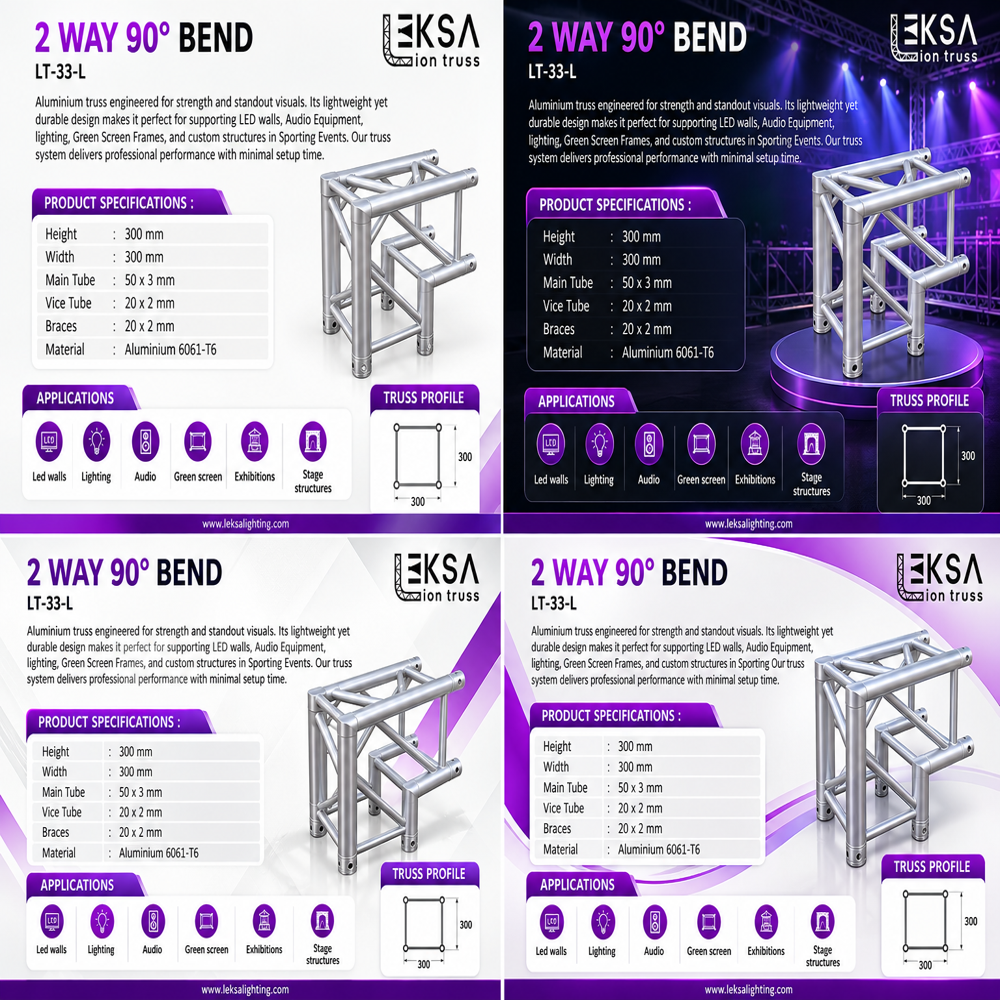

2 Way 90 Bend Aluminium Truss

The 2 Way 90 Bend Aluminium Truss (Model LT-33-L) is a professional truss corner component designed to create a 90-degree change in direction in truss structures. Manufactured from Aluminium 6061-T6, it combines lightweight construction with durability and structural strength.

The truss features a 300 300 mm profile, with 50 3 mm main tubes and 20 2 mm vice tubes and braces. It is suitable for supporting LED walls, stage lighting, audio equipment, green screen frames, exhibition structures, stage setups, and custom event structures. Its modular construction allows quick assembly and makes it suitable for professional event and installation applications.

Key Features

2 Way 90 bend configuration
300 300 mm truss profile
Manufactured from Aluminium 6061-T6
50 3 mm main tube
20 2 mm vice tubes
20 2 mm braces
Lightweight and durable construction
Suitable for professional stage and event structures
Designed for quick and convenient setup
